Choosing the right tool determines your project's success. When you look at a job site, the excavator is the heart of the operation, but the Excavator Buckets are the hands that do the work. Using a mismatched bucket wastes fuel, stresses the machine, and slows down your timeline. This guide explores how to match specific Excavator Buckets to every possible application, ensuring maximum efficiency and ROI.
Efficiency in earthmoving isn't just about horsepower; it's about the interface between the machine and the ground. Excavator Buckets serve as the primary point of contact for material displacement. If you use a standard bucket for rock mining, it wears out in weeks. If you use a massive Heavy duty excavator bucket for light topsoil, you carry unnecessary weight, burning extra diesel every cycle.
In this deep dive, we move beyond basic definitions. We focus on the engineering behind different designs, such as Skeleton excavator buckets for sorting or Tilt excavator buckets for precision grading. By the end of this article, you will understand exactly which attachment fits your specific terrain and task.

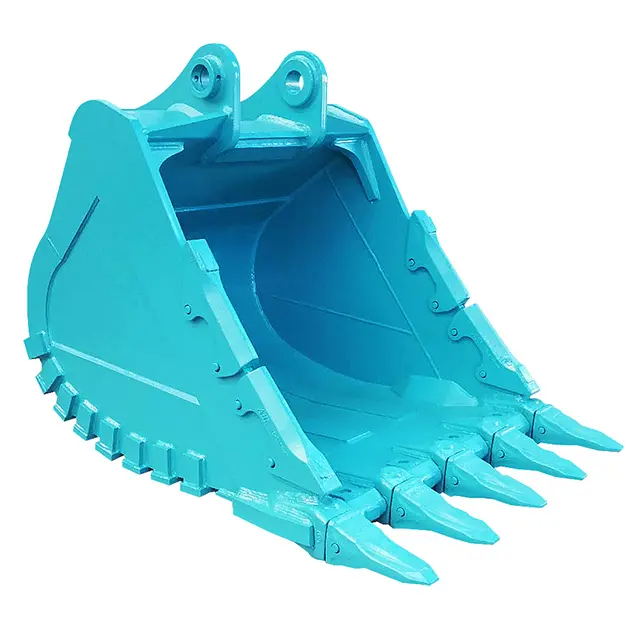

Every fleet starts with the General purpose excavator bucket. Often called a "GP bucket" or "digging bucket," it is designed for moving dirt, sand, and loose clay. They feature a balanced design that maximizes capacity while maintaining a reasonable weight-to-strength ratio.
Standard General purpose excavator buckets typically use high-strength steel for the body and hardened steel for the side cutters and teeth. They are designed with a shallow profile to allow for easy material release, which is critical when working with sticky soils.
Residential Construction: Digging foundations and utility trenches.
Landscaping: Moving mulch, light soil, and gravel.
Stockpiling: Transferring loose materials from piles to trucks.
Feature | General Purpose Bucket | Heavy Duty Variant |
|---|---|---|
Material Weight | Up to 1,200 kg/m³ | Up to 1,800+ kg/m³ |
Teeth Type | Standard tips | Penetration/Rock tips |
Wear Plates | Minimal/External | Extensive/Internal & External |
You should opt for these Excavator Buckets when the ground is "soft" or "average." If you find your operator struggling to penetrate the surface, it’s a sign to move up to a more specialized attachment.

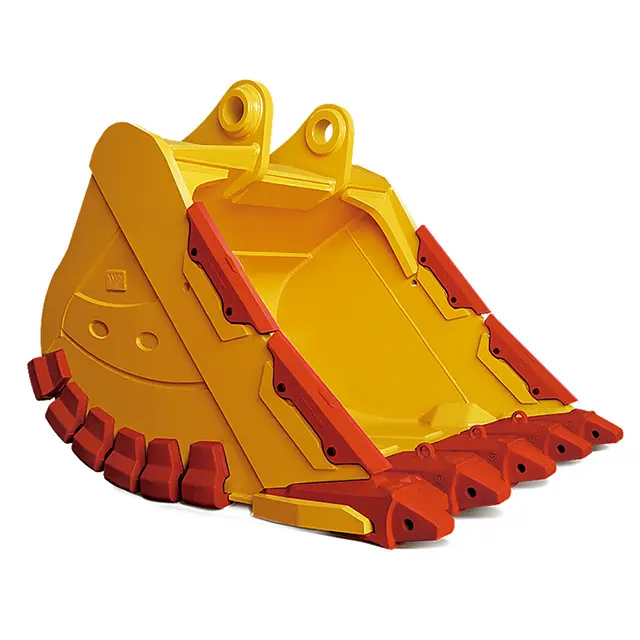

When the ground turns from dirt to compacted gravel, shot rock, or abrasive caliche, the Heavy duty excavator bucket becomes mandatory. These are built with significantly thicker plate steel and reinforced structures to withstand high breakout forces.
Using a light bucket in abrasive conditions leads to "mapping"—where the bottom of the bucket thins out until it cracks. Heavy duty excavator buckets incorporate "wear strips" on the bottom and "cheek plates" on the sides. They often use specialized alloys like AR400 or AR500 steel for high-impact zones.
Reinforced Hinges: The connection point where the bucket meets the arm must be beefed up to handle the torque.
Sidewall Protection: Heavy stones can crush the sides of a standard bucket. HD versions use thicker side cutters to prevent bowing.
Advanced Tooth Systems: These Excavator Buckets utilize specialized teeth designed to stay sharp even as they wear down in rocky soil.
They are heavier than standard versions, which means your machine might move slightly slower, but the durability trade-off is worth it. For extreme mining, some contractors even step up to "Extreme Duty" or "Rock" Excavator Buckets, which feature heel shrouds and lip protectors to ensure the main structure stays intact for thousands of hours.
The Skeleton excavator bucket (or "sieve bucket") is a revolutionary tool for site remediation and demolition. Instead of a solid back, it features a series of steel ribs or a heavy-mesh grid. This allows smaller particles to fall through while retaining larger rocks, bricks, or debris.
Imagine you are clearing a field filled with rocks. A standard Excavator Bucket picks up everything, meaning you pay to transport dirt and rocks together. With a Skeleton excavator bucket, you sift the dirt back onto the ground and only load the rocks into the truck. It effectively turns your excavator into a mobile screening plant.
The spacing between the ribs is the most important factor.
Narrow Gaps (50mm - 75mm): Best for small stone sorting and beach cleaning.
Wide Gaps (100mm+): Ideal for demolition waste and large boulder separation.
Because they are often used in demolition, these Excavator Buckets must be incredibly stiff. They are usually built with the same thickness as Heavy duty units because they deal with the same impact forces from jagged concrete and rebar.
Grading a 45-degree slope with a fixed bucket requires the operator to position the entire machine at an awkward angle. The Tilt excavator bucket solves this by adding hydraulic cylinders that allow the bucket to pivot 45 degrees in either direction.
These Excavator Buckets are wide and usually lack teeth, featuring a smooth cutting edge instead. We see them used most often in:
Road Construction: Shaping ditches and drainage swales.
Landscaping: Leveling complex terrain for parks or golf courses.
Golf Course Maintenance: Precise contouring.
Because they have moving parts and hydraulic lines, Tilt excavator buckets require more attention than static ones. You must grease the pivot pins daily and check hydraulic seals for leaks. However, the time saved in manual labor for grading usually covers the maintenance cost within the first month of use.
In the world of pipeline and utility installation, the V shaped excavator bucket is a niche but essential tool. Its unique geometry creates a trench with sloped sides in a single pass.
Standard square trenches often collapse if the soil isn't stable. The V shaped design creates a self-supporting trench wall. This reduces the need for expensive shoring in some shallow applications (though safety regulations must always be followed).
Reduced Backfill: You only remove the material necessary for the pipe, saving time during the refill process.
Faster Cycle Times: No need to "shape" the trench with multiple movements.
Optimal Drainage: The angled bottom is perfect for laying certain types of agricultural drainage tiles.
When choosing these Excavator Buckets, ensure the "V" angle matches the specifications required by your project’s engineers. Most manufacturers offer several angles to suit different soil stability ratings.
Choosing between General purpose, Heavy duty, or Skeleton attachments depends on three primary variables: Material Density, Abrasiveness, and Project Goal.
If you are moving dry sand (approx. 1,600 kg/m³), you can use a large capacity bucket. If you are moving wet clay (approx. 2,000 kg/m³), you must use a smaller, reinforced Excavator Bucket to avoid overloading the machine's hydraulic system.
Check your material. If it contains quartz or granite, it is highly abrasive. You will need Excavator Buckets with added protection, such as:
Side Shrouds: Protect the vertical edges.
Heel Blocks: Protect the bottom rear corners where dragging occurs.
Lip Shrouds: Protect the area between the teeth.
Project Goal | Recommended Bucket Type | Key Feature |
|---|---|---|
Bulk Excavation | General Purpose | High Volume |
Rock Loading | Heavy Duty | High Breakout Force |
Site Clearing | Skeleton | In-situ Sorting |
Precise Grading | Tilt | 45-degree Pivot |
Pipe Laying | V shaped | Sloped Trenching |
No matter which Excavator Bucket you choose, its lifespan depends on your maintenance routine. Even a Heavy duty excavator bucket will fail if the teeth are allowed to wear down to the adapter.
Check Teeth and Adapters: Are they loose? Are they worn past the "wear limit"?
Inspect Welds: Look for "spiderweb" cracks near the pin connections.
Monitor Wear Plates: If the wear plates are gone, the bucket shell is being eaten away. Replace them early to save the main structure.
Hydraulic Check (for Tilt Buckets): Look for weeping oil or frayed hoses.
We recommend "hard-facing" critical areas of your Excavator Buckets using specialized welding rods. This adds a layer of sacrificial metal that takes the brunt of the abrasion, extending the life of the base steel by up to 50%.
At the end of the day, your choice of Excavator Buckets is an investment in productivity. A General purpose bucket might be the cheapest upfront, but using it in the wrong application will cost you thousands in downtime and repairs. By understanding the specific roles of Heavy duty, Skeleton, Tilt, and V shaped designs, you can tailor your equipment to meet the demands of any job site.
Remember, the goal is always to move the most material in the shortest time with the least amount of wear. When you match the right bucket to the application, your excavator operates at its peak potential.
At YF Bucket, we take pride in being more than just a manufacturer; we are your partners in productivity. Based in our state-of-the-art facility, we have spent years perfecting the art of attachment fabrication. We understand that every project is unique, which is why we focus on producing a wide range of Excavator Buckets—from the most rugged Heavy duty rock buckets to the most precise Tilt grading units. Our factory utilizes advanced CNC cutting and robotic welding to ensure that every seam is perfect. We source only high-grade, wear-resistant steel to guarantee that our products can handle the toughest environments on earth. When you choose a bucket from us, you are choosing decades of engineering expertise and a commitment to quality that is recognized worldwide.
Q: Can I use a Heavy duty bucket for everything? A: While it is durable, it is much heavier. Using it for light soil reduces your "pay load" (the amount of dirt you can carry) and increases fuel consumption unnecessarily.
Q: How often should I replace the teeth on my Excavator Buckets? A: This depends entirely on the material. In abrasive sand, it might be every 200 hours. In soft clay, they might last 1,000 hours. Replace them as soon as the "point" is gone to protect the bucket lip.
Q: Is a Tilt excavator bucket worth the extra cost? A: If you do a lot of finishing work or ditching, yes. It can replace a second machine (like a bulldozer) on many small-to-medium sites, saving you thousands in transport and operator costs.
Q: What is the best way to clean a Skeleton excavator bucket? A: Simply shaking the bucket while it's empty usually clears most debris. For wet, sticky material, you may need to use a pressure washer to clear the ribs to ensure the sifting action remains effective.
Q: Does the size of the bucket affect my excavator's warranty? A: Yes. Every machine has a maximum "tip weight." If you install a bucket that is too large and fill it with heavy material, you can damage the hydraulic cylinders or pins, which may void your warranty. Always check your machine's lifting capacity chart.
