When you face frozen ground, solid rock, or heavily compacted soil, a standard bucket just won't cut it. That is where Excavator Rippers become the most valuable players in your fleet. These powerful attachments transform your machine from a digging tool into a precision demolition and penetration force. By concentrating the entire breakout force of your excavator onto a single point, Excavator Rippers can fracture materials that would otherwise require expensive blasting or hydraulic hammers.
In this guide, we dive deep into the engineering behind these tools, explore the various configurations like the Single shank and multi-shank designs, and provide actionable tips for your next purchase. Whether you are in quarrying, land clearing, or utility trenching, understanding how to select a High strength steel ripper will save you time, reduce fuel consumption, and protect your machine from unnecessary wear.
At its simplest, an Excavator Ripper is a heavy-duty, pointed attachment designed to tear through tough surfaces. Instead of scooping material, it focuses pressure to create fractures. This process is essential for preparing a site for further excavation. Without it, your buckets would suffer from rapid tooth wear and structural fatigue.
Many operators make the mistake of trying to "rip" with a rock bucket. While buckets are strong, they distribute force across multiple teeth. Excavator Rippers concentrate that same force into one narrow path. This allows for:
Deep Penetration: Breaking through frost layers or shale.
Precision: Creating clean lines for utility trenches.
Cost Efficiency: Reducing the need for high-cost specialized drilling equipment.
We often see projects where the soil is too hard for a bucket but not quite hard enough to justify a hydraulic breaker. In this "middle ground," Excavator Rippers are the most efficient solution. They are Low maintenance compared to hydraulic tools because they have no moving internal parts or seals to leak.
To maximize performance, the angle of the shank is critical. A well-designed Heavy duty ripper maintains a consistent "attack angle" throughout its arc. This ensures it pulls itself into the ground rather than skidding across the surface. When you choose a ripper made from High strength steel, it resists the bending forces applied when the excavator pulls the arm toward the cab.
Not every job site is the same, so manufacturers have developed specific styles of Excavator Rippers to handle different challenges. Selecting the right type is the difference between finishing a job in a day or a week.

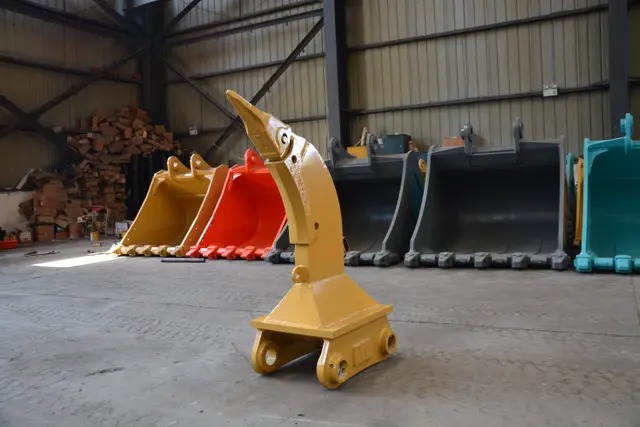

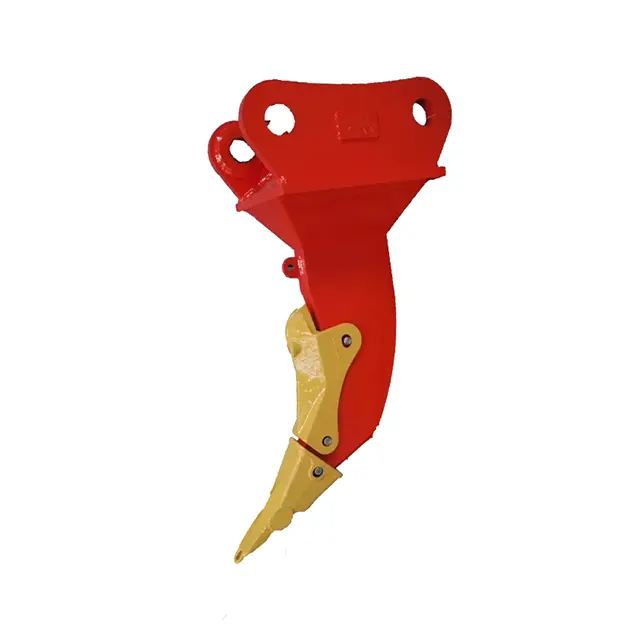

The Single shank ripper is the most common variety. It features one massive, curved tooth.
Best for: Solid rock, heavy frost, and deep stump removal.
Advantage: It offers the maximum possible breakout force because 100% of the machine's power goes into one point.
Construction: These are almost always built from High strength steel (like Hardox or equivalent) to prevent snapping under extreme pressure.
Sometimes called "triple rippers" or "scarifiers," these have two or three teeth spaced apart.
Best for: Compacted gravel, shale, or asphalt removal.
Advantage: They cover more ground in a single pass.
Limitation: They require a much larger excavator because the force is divided. If the ground is too hard, a multi-shank tool will simply "float" on top.
A more modern evolution is the Hydraulic ripper or "vibratory ripper."
How it works: It uses a Hydraulic motor to create high-frequency vibrations while ripping.
Advantage: It can break through material up to 3-4 times faster than a static ripper.
Maintenance: While highly effective, it is not as Low maintenance as a static shank due to the hydraulic components.
Ripper Type | Primary Use Case | Key Strength |
|---|---|---|
Single shank | Solid rock / Deep Frost | Maximum Penetration |
Multi-Shank | Compacted Soil / Asphalt | High Productivity |
Hydraulic | Hard Limestone / Caliche | Speed & Vibration |
Buying Excavator Rippers involves more than just picking a size that fits your machine. You must look at the metallurgy and the design geometry.
You must ensure the attachment is made from High strength steel. Look for "AR400" or "AR500" ratings on the wear surfaces. If the manufacturer uses mild steel, the shank will bend or "mushroom" within weeks of heavy use. A Heavy duty build usually includes reinforced side plates and a thickened base plate where it connects to the quick coupler or pins.
Look at the curve of the shank. A "short" radius curve provides more power but less depth. A "long" radius allows for deeper trenching but requires more engine power to pull through the earth.
Tip: Check if the ripper has a replaceable tip (tooth). Since this part hits the rock first, it wears down fastest. A Low maintenance design allows you to swap the tip in the field with a simple pin removal.
Never put a ripper designed for a 20-ton machine on a 30-ton machine. You will snap the shank. Conversely, putting a 30-ton ripper on a 20-ton machine will make the excavator unstable and could damage your boom cylinders. Always verify the pin diameters and ear spacing match your specific model.
Reinforced Gussets: These support the ears and prevent twisting.
Wear Strips: Extra layers of High strength steel on the sides of the shank to protect against abrasion.
Tapered Design: A shank that thins toward the front penetrates easier but must remain thick at the back for structural integrity.
In this section, we compare the two most popular configurations to help you decide which belongs on your site.
The Single shank ripper is the king of demolition. Because it focuses all hydraulic pressure onto a single tooth, it can achieve a PSI (pounds per square inch) that exceeds the compressive strength of many types of rock.
Land Clearing: We recommend this for removing large tree stumps. You can drive the point under the root ball and use the leverage of the boom to "pop" the stump out.
Pipelaying: It is the go-to tool for cutting a narrow, deep line for pipes in rocky soil. It minimizes the amount of dirt you have to move, which saves time.
Durability: Because it is a single solid piece of High strength steel, there are fewer weld points to fail compared to multi-tooth versions.
If you are working on a road project where you need to scarify a large area of hard-packed clay, the Single shank is too slow.
Surface Preparation: Multi-shanks are excellent for "combing" the ground. They break the surface tension so a standard bucket can follow behind and scoop with ease.
Uniformity: They provide a more level "floor" at the bottom of an excavation because they distribute the cutting action across a wider path.
Power Requirements: Note that these require a "Heavy duty" machine with high-flow hydraulics if you are using a Hydraulic multi-ripper. Static multi-shanks simply need a heavy machine weight to keep the teeth engaged.
Even though Excavator Rippers are known for being Low maintenance, they are not "no maintenance." Neglect leads to catastrophic failure of the shank or, worse, damage to your excavator's arm.
Before starting the shift, check the following:
Pin Tightness: Ensure the pins connecting the ripper to the arm are secure. Loose pins will "oval" the holes over time.
Tooth Wear: Never let the wear reach the shank itself. Replace the tooth as soon as it loses its sharp edge.
Crack Detection: Look at the weld joints. High-vibration environments can cause stress fractures. If you catch them early, you can grind them out and re-weld.
Don't Side-Load: Excavator Rippers are designed to pull in a straight line. Never use the ripper to pry or twist sideways. This is the #1 cause of snapped shanks.
Proper Storage: If you aren't using it, coat the bare metal areas (like the tooth seat) with a bit of grease to prevent rust.
Use the Right Tooth: Different rocks require different tooth shapes. Use a "Symmetric" tooth for general ripping and a "Tiger" tooth for maximum penetration in frozen ground.
To get the most out of your Heavy duty equipment, you need to use the right technique. Simply dragging the ripper through the ground is not always the best way.
For very hard rock, don't try to rip the whole length at once. Drive the Single shank into the rock, pull until you feel resistance, then lift and move forward 12 inches. By creating a series of vertical fractures first, the subsequent horizontal pull becomes much easier.
Position your excavator so you are ripping "downhill" if possible. The weight of the machine adds to the downward pressure of the Hydraulic cylinders. This increases the penetration depth of the High strength steel point without adding extra stress to the engine.
Efficient operators often keep the ripper on a quick coupler. They rip for 30 minutes to break up a large section, then switch to a bucket to clear the debris. This "Rip and Flip" method is far more productive than trying to struggle through un-broken ground with a bucket alone.
A common question we hear is: "Should I buy an Excavator Ripper or a Hydraulic Hammer?" The answer depends on your budget and the material hardness.
Excavator Rippers are significantly cheaper to buy and maintain. A hammer has seals, nitrogen charges, and complex moving parts that require specialized service. A ripper is a solid piece of High strength steel. If your material is breakable by a ripper, it is always the more profitable choice.
In urban areas, hammers are often banned or restricted due to noise. Excavator Rippers are nearly silent. They allow you to work in residential zones or near hospitals without violating noise ordinances.
If you are dealing with solid, non-fractured granite, a ripper might not be able to "bite" into the surface. In that specific case, the impact force of a hammer is necessary. However, for 80% of earthmoving tasks, a Heavy duty ripper is sufficient.
When you are looking for the best Excavator Rippers, you need to trust the people building them. We at YF Bucket have dedicated years to perfecting the art of attachment manufacturing. Since our founding in 2006, we have grown into a leading manufacturer with over 30,000 square meters of production space.
We take pride in our "Quality First" philosophy. Every Heavy duty ripper we produce undergoes rigorous testing. We use only High strength steel to ensure that our products can withstand the harshest environments, from the frozen tundras of Northern Europe to the rocky quarries of Australia. Our global reach means we understand the specific needs of different markets, ensuring that when you buy from us, you get a tool that is perfectly matched to your local soil conditions.
Q: Can I use an Excavator Ripper on a Mini-Excavator? A: Yes! We manufacture Heavy duty rippers for machines as small as 1 ton. They are excellent for landscaping and small-scale utility work.
Q: How deep can a Single shank ripper go? A: This depends on the shank length. Most standard rippers are designed to penetrate between 500mm and 1200mm, depending on the machine size.
Q: Is it better to weld a broken ripper or buy a new one? A: If the main High strength steel shank snaps in half, we recommend replacement. The heat from a deep weld can change the temper of the steel, making it brittle and prone to breaking again in the same spot.
Q: Does a ripper help with fuel efficiency? A: Absolutely. It takes much less fuel to pull a sharp Single shank through the ground than it does to force a blunt bucket through the same material. You reduce the "load" on the engine significantly.
Q: What is the most important "Buying Tip"? A: Check the steel grade. If it isn't High strength steel, don't buy it. Saving $500 on a cheaper ripper will cost you $5,000 in downtime when it fails.
